Polyimide Film Catalog
Select a product line to inspect detailed technical specifications, or add it to the comparison tool to verify parameters side-by-side.

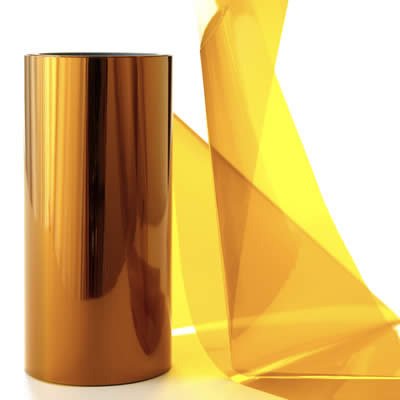

HN Polyimide Film
Standard PMDA-ODA chemistry homopolymer film. Outstanding balance of mechanical, electrical, and chemical properties over a wide temperature range.
- Continuous Temp: -269°C to 240°C
- Dielectric: 6000 V/mil
- Standard Kapton chemistry

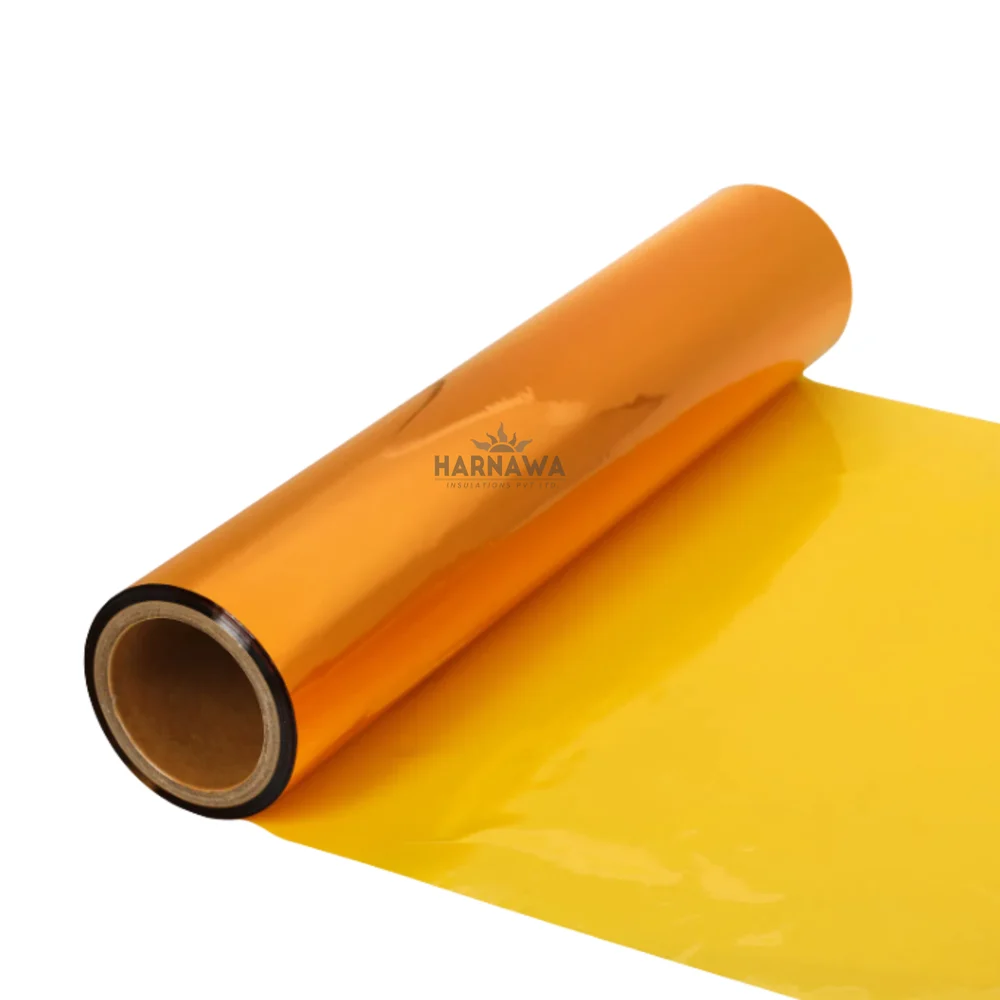

FEP Coated Film (FH/FHF)
Features FEP coating layer on one side or both sides. Offers heat-seal lamination to copper foils and metals without adhesive bonding.
- Adhesive-free heat sealing
- Continuous Temp: up to 300°C
- High peel strength to copper
Black Polyimide Film
Carbon-pigment matrix film providing absolute opacity (transmittance ≤ 0.1%) for camera modules, displays, and high-temp barcode labels.
- Opacity: Transmittance ≤ 0.1%
- Permanent pigment (won't fade)
- Wider roll defaults: 620 mm

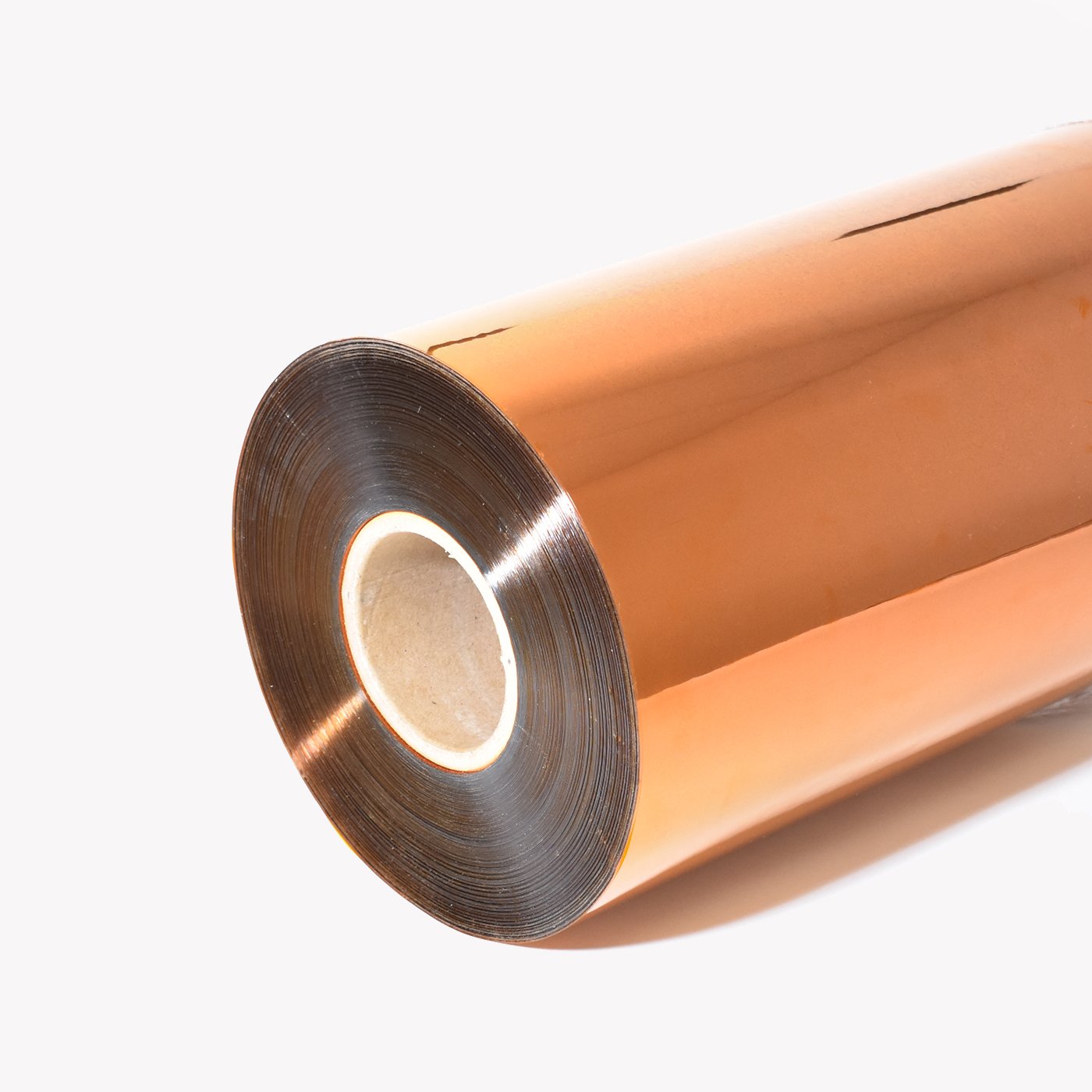

ESD Polyimide Film
Special surface treatment delivering controlled static charge dissipation. Ideal for cleanroom microelectronics and wave solder masking.
- Controlled resistivity: 10⁵–10⁹ Ω
- Leaves zero residue on removal
- Protects microelectronics

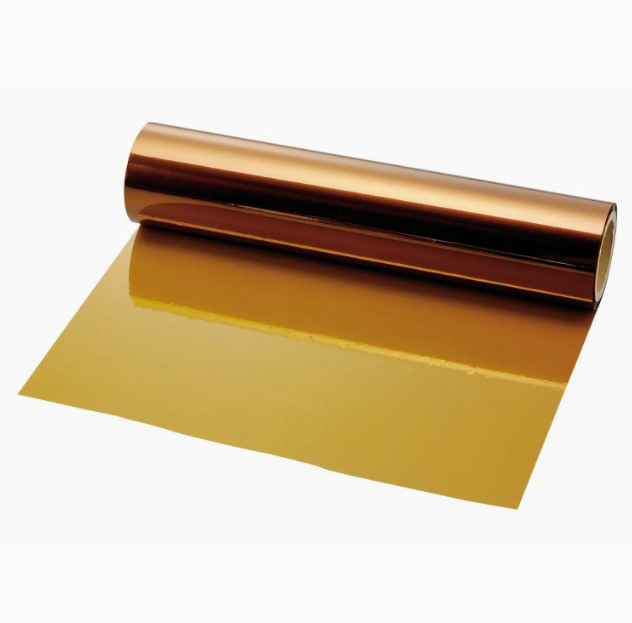

Corona Resistant Film (CR)
Chemically modified with inorganic nano-fillers. Withstands partial discharge stress and voltage spikes in VFD motors and EV drivetrains.
- Corona Life: ≥ 80 hr at 3kV
- High dielectric: ≥ 200 MV/m
- FEP coated options (FCR/FCRF)

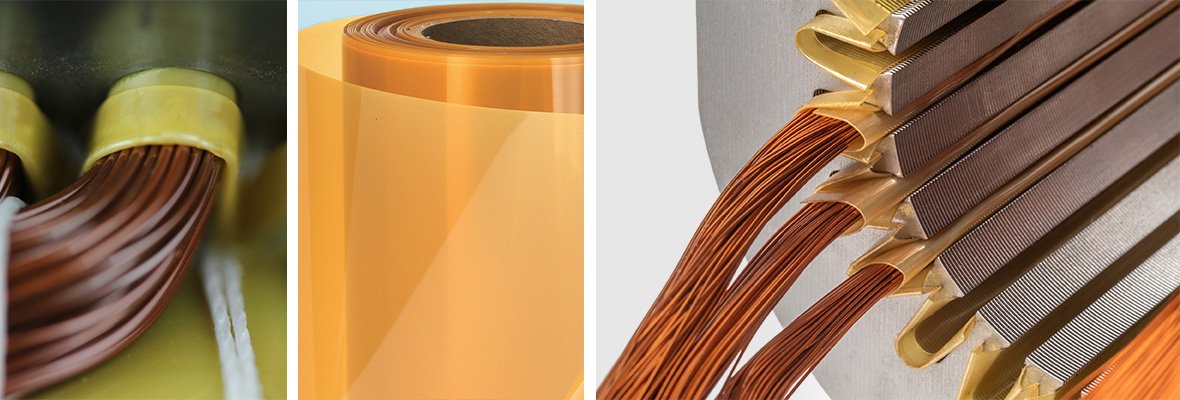

NHN Composite Film
Three-layer laminate featuring central HN polyimide film sandwiched between two layers of high-density Nomex non-woven insulation papers.
- High mechanical slot stiffness
- Breakdown Voltage: 8 – 10 kV
- Standard 914 mm slot rolls

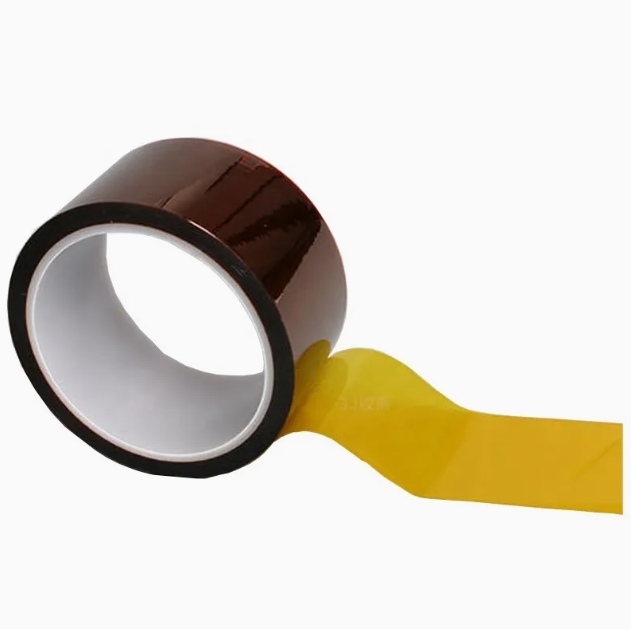

Thermal Conductive (MT)
MT series film filled with thermally conductive ceramic particles. Combines heat spreading capabilities with full dielectric isolation for batteries.
- Conductivity: > 0.36 W/m·K
- Dielectric: ≥ 120 MV/m
- Crucial for EV battery dividers

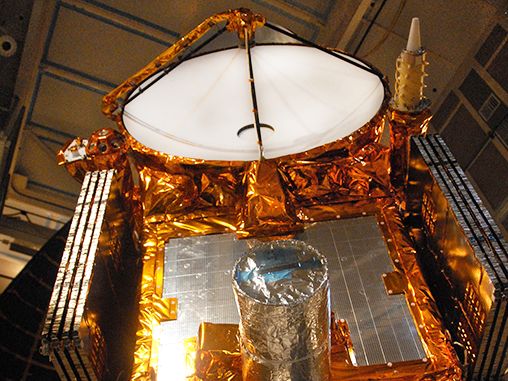

Aluminized Polyimide Film
Sputtered vapor deposited aluminum on HN base film. Offers physical RF reflection and EMI shielding with one insulating side.
- Reflective PVD aluminum side
- Conductive + insulating side
- Space MLI thermal blankets

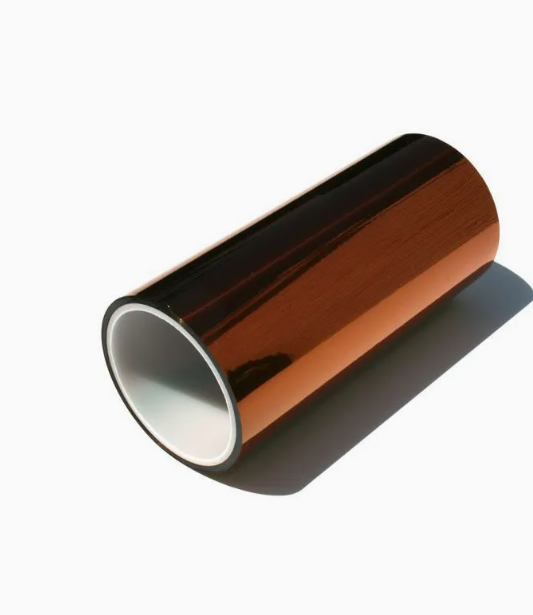

Colourful PI Film
Red, Green, and transparent/clear films with color pigment cast directly within the matrix. Color remains stable without bleeding up to 400°C.
- Permanent color in matrix
- No bleeding or fading at 400°C
- Optically clear grade available

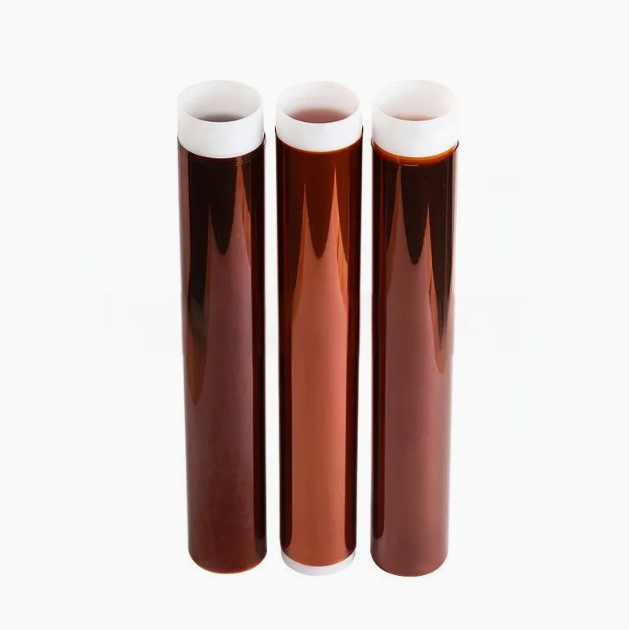

Voice Coil Former Film
Loudspeaker grade film with high dimensional heat stability and acoustic neutrality. Low moving mass, resistant to winding solvent varnishes.
- Zero former resonance
- Low moving mass density
- Resists winding varnish solvents
High-Performance Industrial Applications
Our specialized polyimide films are engineered to meet the demanding requirements of global technology leaders across aerospace, automotive, electronics, and heavy machinery industries.
Aerospace & Satellites
EV Batteries
EHV Power Grids
Inverter Motors
PCB Solder Masking
Voice Coil Formers
Direct Manufacturer Supply & Lab Verification
INSOURCES EXIM PVT LTD eliminates import premiums by delivering Kapton-equivalent PMDA-ODA chemistry directly from our Bhiwandi factory. We serve critical technology leaders globally.
Cryogenic to Ultra-High Heat Limits
Engineered using premium PMDA-ODA condensation synthesis. Withstands continuous thermal cycles from -269°C up to 240°C, and short-term spike exposure up to 400°C without melting or flowing.
High Dielectric Breakdown Resistance
Delivers up to 6000 Volts per mil (240 kV/mm) of electrical breakdown insulation strength. Prevents insulation failure in high-voltage wind stators and EV traction inverter systems.
Custom High-Precision Slitting Lines
Equipped with advanced circular shear slitting lines. Delivers narrow rolls starting down to 3.0mm with width tolerances of ±0.1mm to match slot windings exactly.
10+ Specialized Film Formulations
Full catalog range covering standard general-purpose HN, FEP heat-sealable laminated (FH), black opaque shielding (BX), corona resistant inverter slots (CR), and static-dissipative ESD maskings.
Polyimide Winding Compare Builder
Inspect physical, thermal, and dielectric specifications side-by-side for your selected specialty films.
Class 100,000 Cleanroom & Casting Lines
Take a look inside our advanced manufacturing facility featuring 11 biaxially-stretched production lines, 6 casting lines, and high-precision roll slitting works.
Live Match Spec Configurator
Adjust target parameters on the left to identify the recommended polyimide film grade with an instant percentage match score.
Specify your requirement.
Get a quote today.
Tell us your required polyimide film grade, target thickness, width, and application parameters. Our Bhiwandi works engineering team will recommend specifications and quote competitive factory-direct pricing within 2 hours.
100% Genuine PMDA-ODA Chemistry
Kapton-equivalent high-temp direct manufacturer supply
Quick Turnaround
Quotes processed in less than 2 hours
Custom Micro-Slitting & Logistics
Precise custom slitting down to 3.0mm with global dispatch
